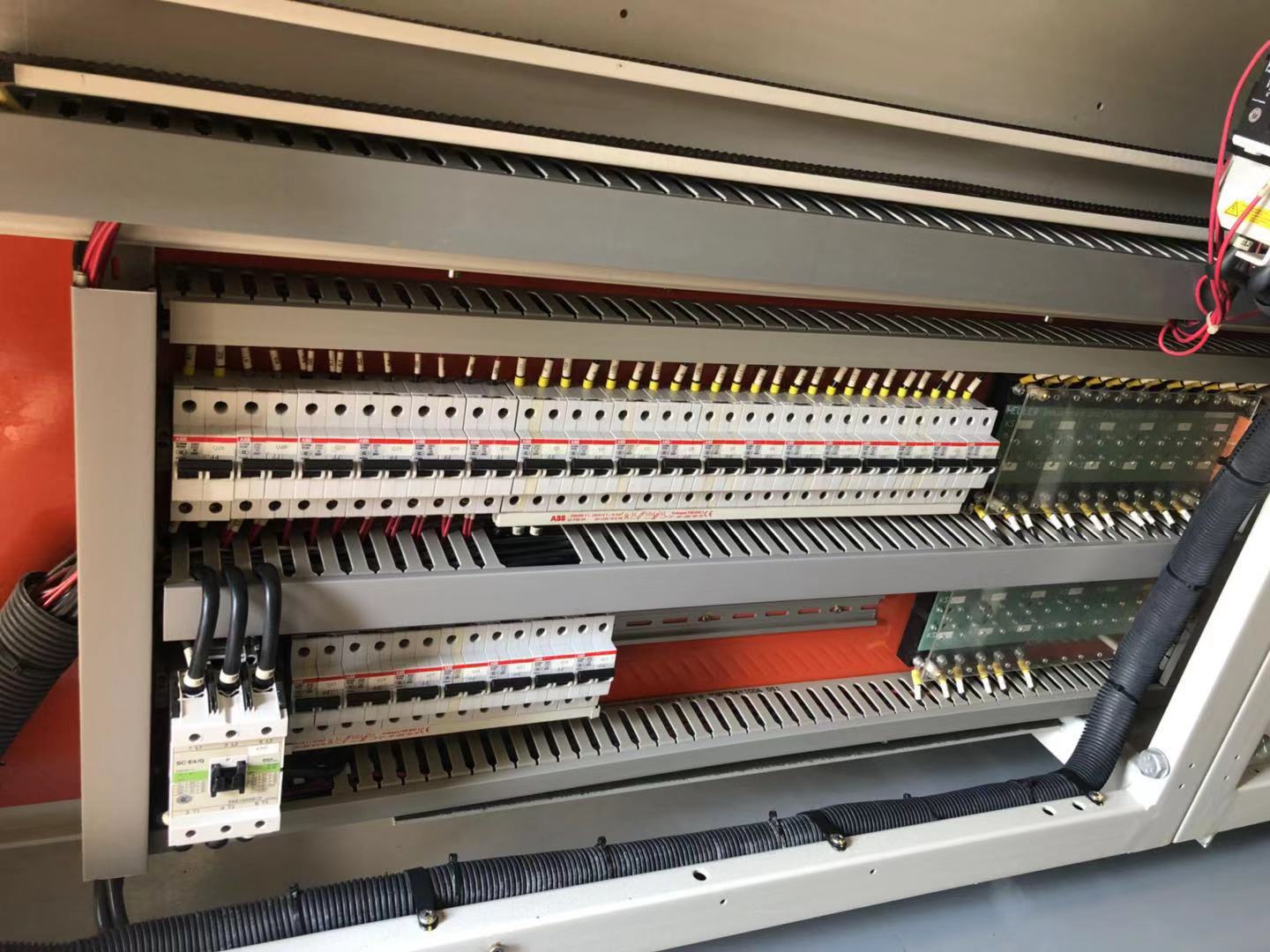

| HELLER reflow 1809EXL specifications: |
| |
| 1.Heating zone / cooling zone: |
| |
| Number of heating zones: upper 9 / lower 9 (both above and below the IR furnace) |
| |
| Heating zone length: 2660mm |
| |
| Number of cooling zones: 2 |
| |
| 2.Input voltage: |
| |
| 380V three-phase, 50 / 60HZ |
| |
| 3.Specifications: |
| |
| Dimensions: 4650mm long X1371mm wide X1600mm high |
| |
| Weight: 1588 kg (air furnace) (nitrogen furnace weight depends on previous configuration) |
| |
| 4.Temperature control: |
| |
| Temperature control accuracy: ± 0.1 ℃ |
| |
| Temperature difference across the plate: ± 2.0 ℃ |
| |
| Temperature control range: 25-350 ℃ |
| |
| Heating wire material: Nickel-chromium alloy coil with quick response |
| |
| Start-up heating time: 1-5 minutes (15-20 minutes, nitrogen furnace) |
| |
| Profile switching time: 1-15 minutes (15-20 minutes, nitrogen furnace) |
| |
| 5.PCB board transfer system: |
| |
| Transmission method: mesh belt transmission, chain transmission |
| |
| Transmission speed: 250-1880mm / min |
| |
| Rail high speed: 940mm ± 50mm |
| |
| Mesh belt height: 890mm ± 75mm |
| |
| Allowed board width: 50-508mm (50-380 minutes, nitrogen furnace) |
| |
| 6.Nitrogen operation: |
| |
| Oxygen content in the furnace: 50-1000PPM |
| |
| Required nitrogen flow: 14-28 cubic meters per hour |
| |
| Flux residue treatment: filter-free separation system |
| |
| 7.Computer operating system: |
| |
| Computer specifications: IBM Celeron 1.7GHz or more |
| |
| Display: 15-inch CRT |
| |
| Operating platform: Windows XP |
| |
| |
| HELLER1809MKIII reflow oven specifications: |
| |
| Power input (3-phase) standard: 480 volts |
| |
| Circuit breaker size: 100amps @ 480v |
| |
| Kilowatt: 8.5-10.5 continuous |
| |
| Typical operating current: 20-25amps @ 480v |
| |
| Optional power input available: 208/240/380/400/440/415 VAC |
| |
| Frequency: 50/60 Hz |
| |
| Continuous Zone Open: Standard |
| |
| Single-phase operation: Not available |
| |
| Equipment size: L4650 × W1370 × H1600 (mm) |
| |
| Net weight: 1588kg |
| |
| AMD or Intel Computer: Standard |
| |
| Recipe storage:> 500 |
| |
| Flat-screen display: Standard |
| |
| Windows operating system: Windows XP® |
| |
| Large PCB width: 20 cm (50.8 cm) |
| |
| Space required between PCBs: 0.0 cm |
| |
| Conveyor length loading: 18 cm (46 cm) |
| |
| Conveyor length unloading: 18 cm (46 cm) |
| |
| Heating tunnel length: 105 cm (254 cm) |
| |
| Process gap above mesh belt: 2.3 cm (5.8 cm) |
| |
| Mesh belt spacing: 0.5 cm (1.27 cm) |
| |
| Large conveying speed: 74cm / Min (188 cm / min.) |
| |
| Conveyor direction from left to right: standard |
| |
| Conveyor direction from right to left: optional |
| |
| Conveyor speed control type: closed loop |
| |
| Height from floor-standard: 37.0 cm ± 2.0 cm (94 cm ± 5 cm) |
| |
| Floor height-optional: 32.6 cm + 3.9 cm /-. 4 cm (83 cm + 10 cm / -1 cm) |
| |
| Clearance above the conveyor: 1.15 cm (2.9 cm) |
| |
| Clearance under the conveyor: 1.15 cm (2.9 cm) |
| |
| PCB support foot length: .187 cm (4.75 mm) |
| |
| 3 mm long support pin: optional |
| |
| Small / large board width: 2.0 cm-18 cm (5-45.7 cm) |
| |
| Edge-holding track heater: Not required |
| |
| Power width adjustment: standard |
| |
| Computer-controlled width adjustment: optional |
| |
| Automatic lubrication system: standard |
| |
| Like: 9 |
| |
| Base: 9 |
| |
| Heater type: Instant response open coil |
| |
| Heater material: nickel-chromium alloy |
| |
| Infrared panel heater (for curing): optional |
| |
| Temperature controller accuracy: ± .1 ° C |
| |
| Cross-band temperature tolerance: ± 3.0 ° C |
| |
| Heater power per zone: 6000 watts |
| |
| Temperature range standard: 25-350 ° C |
| |
| High temperature up to 400 ° C: optional |
| |
| High temperature up to 450 ° C: optional |
| |
| Insulation type: Calcium Silicate |
| |
| UV curing: optional |
| |
| Number of cooling zones: 2- (3 optional) |
| |
| Extra cooling area (external): optional |
